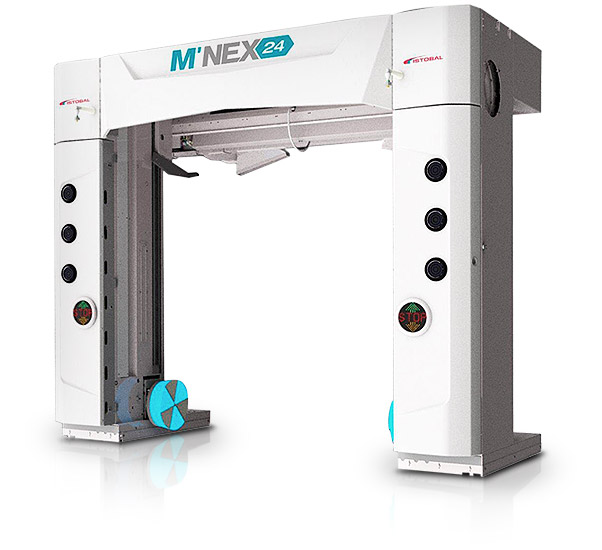

MNEX24 Automatic Rollover Car Washing Machine

CONTOUR MAX - TOUCH FREE AUTOMATIC.

Istobal is proud to introduce the M’NEX24 Contour Max. The M24 is an extremely efficient, high-pressure contouring touch free rollover. They have combined photo cell and modern software to create exceptional
vehicle mapping technology.

This technology enables the M24 to profile the vehicle and keep the high pressure nozzles approximately one foot from the vehicle’s surfaces. The contouring ability also creates the industry’s most penetrating presoak applications. The strategic stacking of presoak, conditioners, high pressure and spot free rinse nozzles creates a flexible platform that produces not only industry leading clean cars, but does so in less passes.

Istobal’s “Screen @ Access” internet based two way communication system connects operators and service personnel directly to the machine’s operating and controls system. This allows remote resets, programming and wash information in real time via internet connection. Revenue enhancing tri color foam, conditioners, targeted multiple technology wheel and rocker panel blasters, giving you multiple wash programs capability and maximum revenues! The M’NEX24 Contour Max =’s Performance + Productivity and Profitability!

WASH DIMENSIONS



HEIGHT ON RAILS

3125

HEIGHT ON RAILS (WITH DRYER)

3226

WIDTH

3860

VEHICLE CLEARANCES / WASH ENVELOPE



WIDTH (AT MIRROR LEVEL)

2489

HEIGHT (NO DRYER)

2489

HEIGHT (ON BOARD DRYER)

2464

TOTAL MACHINE HEIGHT

3,097

MINIMUM WASH BAY SIZES



LENGTH

9144

WIDTH

4267

HEIGHT (NO DRYER)

3048

HEIGHT (WITH ON BOARD DRYER)

3302

ELECTRICAL & WATER REQUIREMENTS



GANTRY

20 Amps-208/230VAC-60Hz 3Ph

ISTOBAL PUMP

60 Amps-208/230VAC-60Hz 3Ph

UPGRADE TO CAT/GENERAL PUMP

80 Amps-208/230VAC-60Hz 3Ph

ADD ON BOARD DRYER

+80 Amps-208/230VAC-60Hz 3Ph

WATER SUPPLY

Istobal Pump 22 GPM min @ 50 PSI

CAT OR GENERAL PUMP UPGARDE

35 GPM min @ 50 PSI

ADD DUAL ACTION WHEEL SCRUBBERS

Air Supply 1/2 line 100 PSI 3CFM


*All measurements are in mm



TOUCH-FREE WHEEL BLASTERS

Hammer-style, high pressure, rotating touch free wheel blasters are standard with Contour Max. Through the use of photo cells and cutting-edge software, this machine finds and target-blasts wheels and tires. Customizable programing allows operators to select wheel-only or wheel and rockers settings, allowing for many wash menu options.

DUAL ACTION WHEEL SCRUBBERS

Istobal perfectly utilizes modern technology to locate, map and then thoroughly clean the vehicle’s wheels and
rocker panels. Istobal dual-action wheel scrubbers utilize soft brushes that counter rotate with integrated 1200
PSI targeted directly on the wheels. The industry’s best wheel and tire cleaning technology creates visibly cleaner wheels and happy repeat customers!
