Automatic Rollover
Car Wash Machines

Delivering a Superior Wash Performance

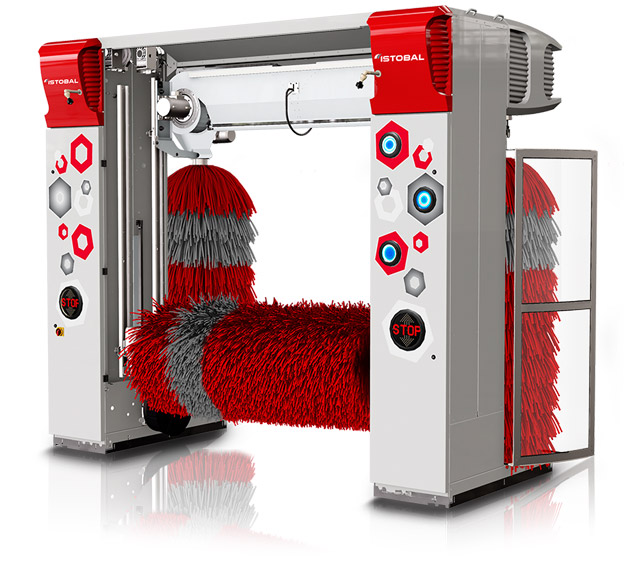

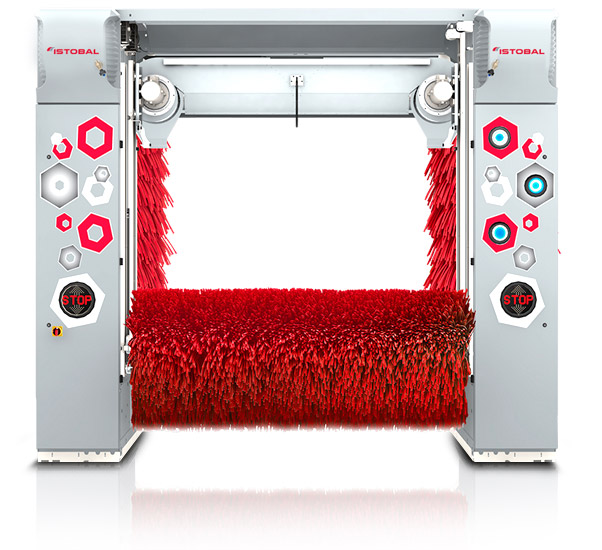

M'START Automatic Rollover Car Wash Machine

Car wash efficiency is more than a concept. It is the result of bringing together quality, technology and performance into a single design. Here it is. M’START, the rollover developed by ISTOBAL. Client expectations fulfilled.

TECHNOLOGY

Controller - PLC with standardised modules and a flexible configuration for optional extras. The use of the
Profibus communication protocol enhances communication and reduces machine wiring and connections.

Command post - Allows all of the machine's external elements to be connected. Two viewer options: standard and colour touch screen.

FLEXIBILITY

Configuration of programs - The flexible programming of the M’START facilitates adaptation to individual user needs. Different wash programs can be configured, speeds can be parametrised, chemical products can be dosed, light sign codes can be set, etc.

PERFORMANCE

High pressures - A number of high pressure pre-wash options with a common goal: removing stubborn dirt from the vehicle body.

Oscillating high pressure, 42 L/min [11.1 gpm], 80 bar [1160 PSI] - The oscillating high pressure with rotating and zeroangle nozzles is located on the side at the top of the machine. It prevents dripping on the surface of the vehicle and speeds up the pre-wash.

On-board high pressure, 21 L/min [5.5 gpm], 70 bar [1015 PSI] - With the on-board system, the M’START is equipped with a high-pressure 21 L/min [5.5 gpm] 70 bar [1015 PSI] pump built into the post. This side high pressure option avoids the costs of installing these pumps in the plant room.

MECHANISM

Brush tilt - Accurate wash control thanks to 10º tilt of side brushes.

VERSATILITY

Available in different heights - Solid and compact structure available in four different wash heights.

WASH DIMENSIONS

WASH WIDTH

2,300

2,500

2,700

2.700

WASH HEIGHT

2,400

2,400

2,400

2,400

LENGTH OF RAILS

9,000

9,000

10,000

11,000

MIN MACHINE WIDTH

3,800

3,800

3,800

3,800

MAX MACHINE WIDTH

4,145

4,145

4,145

4,145

TOTAL MACHINE HEIGHT

3,083

3,313

3,513

3,713

*includes energy chain
** Includes energy chain + option splash

*All measurements are in mm

EFFECTIVE DRYING

Dryer 15.2 kW [20.4 hp] (4 x 3.8 kW [5.1 hp]) with
horizontal dryer nozzle plus vehicle scanning and
optional deflector to achieve a better result on the
rear of the vehicle. As an alternative, we offer a
choice of two 4 kW [5.4 hp] turbofans fitted to the
top of the machine to perform the dry with no need
for scanning.







SPLASH SCREENS

Perspex screens with aluminium reinforcement,
with a safe and practical design and fully
integrated into the machine's structure. Option
recommended to avoid splashing during the wash
phase.









COMMUNICATIONS

It communicates the equipment with the IWMANAGER, a management and control software
both in connection or remotely. The Screen Access
software is also available for remotely accessing
the command post for diagnostics.





GLOSSY POLISH MIRROR

Product recommended for a mirror-like finish.
After application, the brushes massage the vehicle
surface to give an extra shine.







WHEEL WASH

Perspex screens with aluminium reinforcement,
with a safe and practical design and fully
integrated into the machine's structure. Option
recommended to avoid splashing during the wash
phase.









UNDER CHASSIS WASH

Possible choice: static underchassis wash 10 bar
[145 PSI] 90 L/min [23.8 gpm], oscilating 15 bar
[217 PSI] 120 L/min [31.7 gpm], or by sector 15 bar
[217 PSI] 120 L/min [31.7 gpm].
